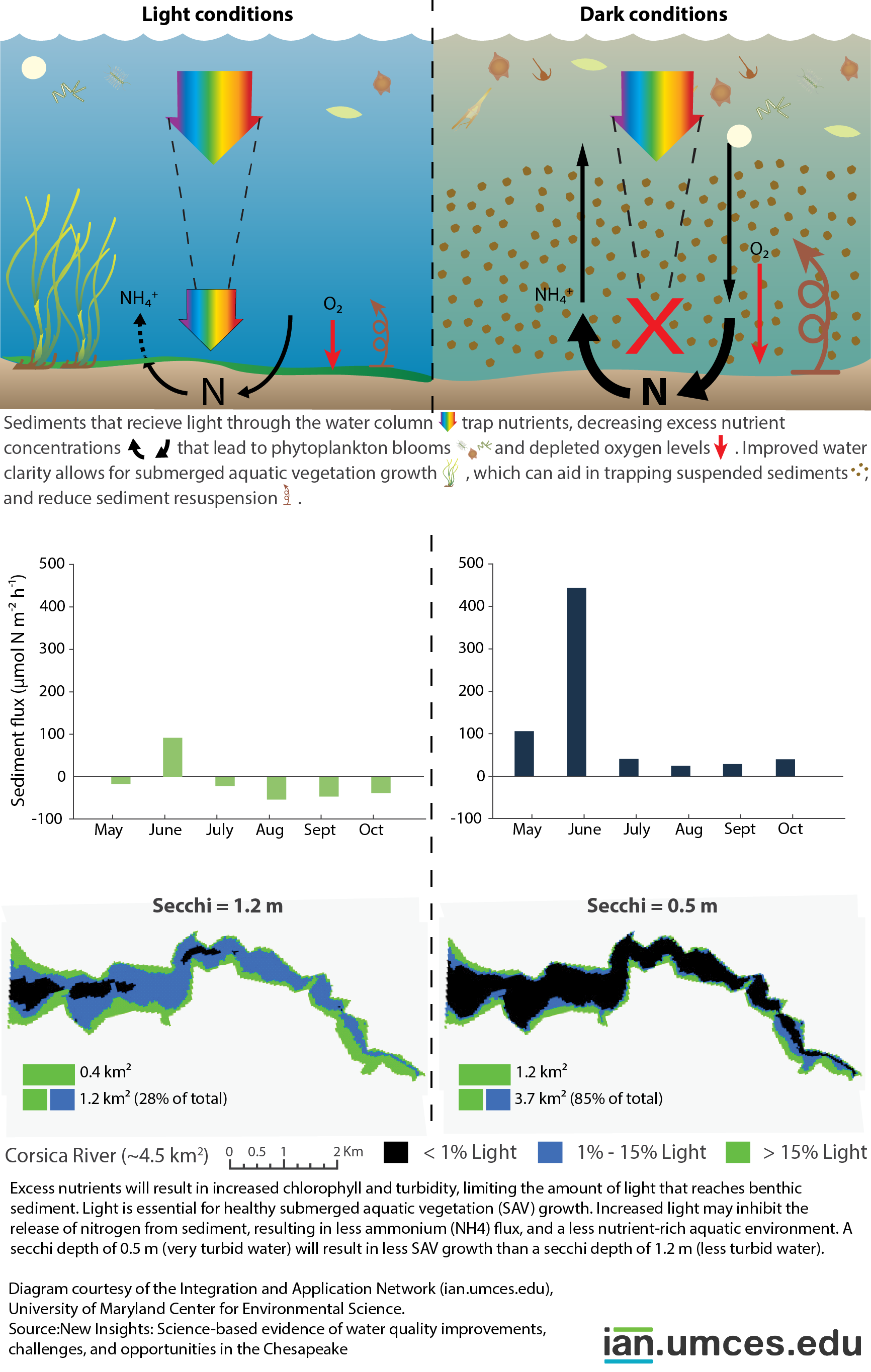

A diagram depicting the effect that light conditions have on SAV and the trapping of nutrients.

Nutrient Trapping Diagram

A diagram depicting the effect that light conditions have on SAV and the trapping of nutrients.

Nutrients light conditions SAV submerged aquatic vegetation water quality New Insights
